How RC Helicopters Servos Work?

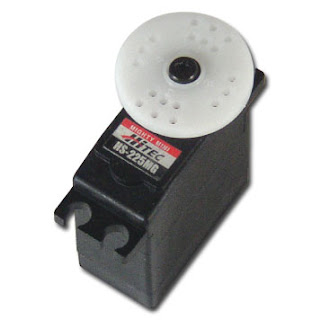

rc servo imageEvery rc model have a servo to make any movement, especially for your rc helicopters. This is because our rc models are controlled by servos. Here are some simple explanations about servo : A servo is a device rotates a shaft to a position set by the user, and holds this position until further input is given. Servos usually consist of a small DC (direct current) electric motor, several gears, and a head where an arm or wheel can be attached. When the user tells the servo what angular position to move to, the servo rotates and holds position until further input is specified. Servos are designed to hold position because external forces are always interacting with the aircraft, and would set control surfaces to undesired positions unless stopped. Servos exert a torque on external forces, that prevents them from changing the position of any control surface.

RC Helicopter Servo Work

Here are a simple explanations in how servo work for your rc helicopter : A servo’s job is to convert the angular movement of a servo arm to the linear movement of a control surface. This is done by attaching linkages, called control rods to the servo arm and the associated control surface. When the servo head rotates, it pushes the control rod back and forth. The rod is linked to a control surface, and can move it up or down as the servo rotates.

Three wires control a RC helicopter servo: two to provide the DC electricity that the motor needs, and one that sends the signal, controlling the servo. The signal wire works by sending the servo a series of pulses, which are interpreted by it’s internal circuitry. By varying the timing of each pulse, the servo knows exactly which position to move to.
